Pressure Vessels

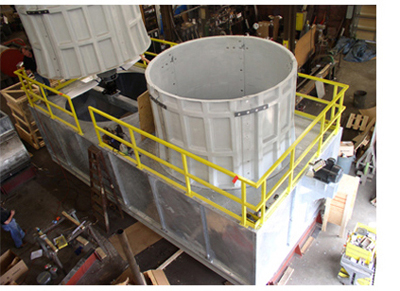

How does the EconoCool Work?

Process fluid flows inside the tubes (every application specifically designed for the client)

Water is continuously sprayed over the tubes and flows via gravity through the tube bundle into the collection basin for recirculation

Heat from the tube side fluid is transferred to the cascading water

Heat is released from the cascading flowing downward over the tubes. This occurs by both thermal and mass transfer

The air stream is forced to turn upward by the induced draft fan providing maximum free water removal (net result is minimal drift)

More About Pressure Vessels

  • ASME Sect. VIII Div 1 (U and R stamp)
  • CRN
  • ASME PTC - 23 - 2003

  • Vessel Size
  • Varies with application

  • Materials
  • Carbon Steel A36, A516, CRM0
  • Stainless Steel 304, 316, 309, 310, 321
  • Other materials offered on applications

  • EconoCool
    We have the expertise to engineer equipment for new applications or to refurbish or replace existing equipment.

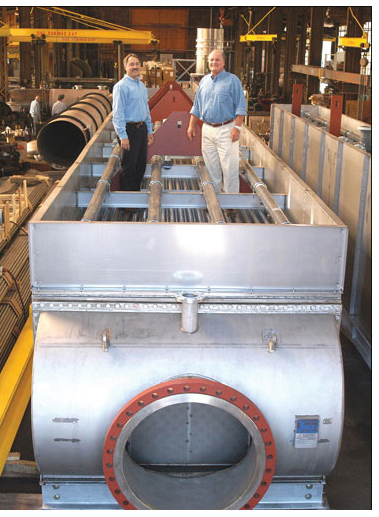

    Refurbish equipment
